| Country: Belgium | Manufacturer/Brand: SBR Société Belge Radio-Electrique, Bruxelles |
| Year: 1960 | Type: Radio or Tuner |
| Transistors | 7: |
|---|
| Principle | Super-Heterodyne (Super in general) |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Power type and voltage | Dry Batteries / 3 × 1,5 Volt |
| Loudspeaker/pwr.out | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| from Radiomuseum.org | Model: P10 |
| Material | Various materials |
| Shape | Portable, e.g. Portable Radio (with or without mains > 8 inch). |
| Dimensions (WHD) | 260 x 160 x 80 mm / 10.2 x 6.3 x 3.1 inch |

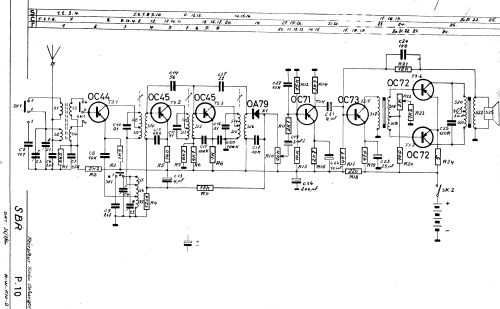

| Notes | Transistors: OC44, 2× OC45, OC71, OC73, 2× OC72; diode: OA79. |
This model was suggested by Jean-Paul Moriamé.
All listed radios etc. from SBR Société Belge Radio-Electrique, Bruxelles
Here you find 211 models, 187 with images and 85 with schematics.
Collection of Jean-Paul Moriamé (B)
