Goldsuper W35-3D

Goldsuper W35-3D; Schaub und Schaub- (ID = 955242) Radio

Goldsuper W35-3D; Schaub und Schaub- (ID = 955243) Radio
Goldsuper W35-3D; Schaub und Schaub- (ID = 27158) Radio Goldsuper W35-3D; Schaub und Schaub- (ID = 27160) Radio

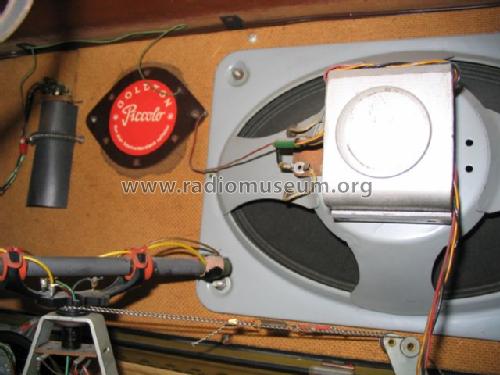

Goldsuper W35-3D; Schaub und Schaub- (ID = 27159) Radio Goldsuper W35-3D; Schaub und Schaub- (ID = 27161) Radio
Goldsuper W35-3D; Schaub und Schaub- (ID = 103459) Radio
Use red slider bar for more.
Goldsuper W35-3D; Schaub und Schaub- (ID = 27158) Radio
Schaub und Schaub-: Goldsuper W35-3D [Radio] ID = 27158 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Goldsuper W35-3D, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF93 EABC80 EM85 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: Goldsuper W35-3D - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 370 x 270 mm / 24 x 14.6 x 10.6 inch
Notes Der Rundfunk- und Fernseh-Katalog 1954/55 gibt fälschlicherweise 11 FM-Kreise an.
Net weight (2.2 lb = 1 kg) 11.2 kg / 24 lb 10.7 oz (24.67 lb)
Price in first year of sale 368.00 DM
Collectors' prices
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55
Literature/Schematics (1) -- Schematic
