Kongress 53E II (53E2)

Kongress 53E II ; Schaub und Schaub- (ID = 567067) Radio Kongress 53E II ; Schaub und Schaub- (ID = 567068) Radio
Kongress 53E II ; Schaub und Schaub- (ID = 567069) Radio
Use red slider bar for more.

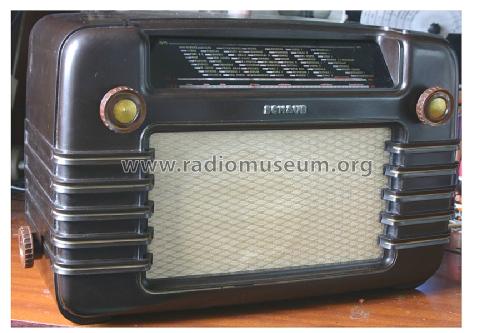

Kongress 53E II ; Schaub und Schaub- (ID = 567067) Radio
Schaub und Schaub-: Kongress 53E II [Radio] ID = 567067 900x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kongress 53E II (53E2), Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6BE6 6BA6 6AV6 6AQ5
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Kongress 53E II - Schaub und Schaub-Lorenz
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 355 x 252 x 163 mm / 14 x 9.9 x 6.4 inch
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)

Model page created by Júlio Branco. See "Data change" for further contributors.
