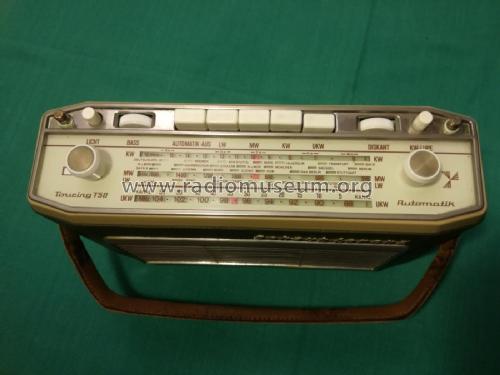

Touring T50 Automatik 101003 moosgrün-hellbraun

Schaub und Schaub-Lorenz

  • Year
  • 1964/1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 175935

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.

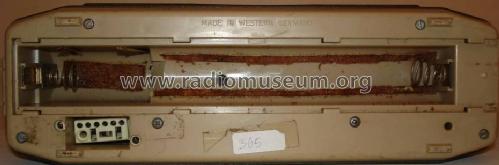

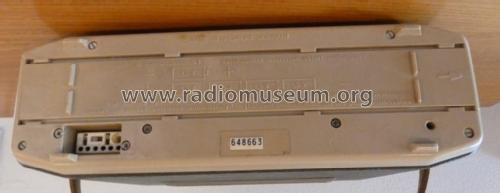

  • Power type and voltage
  • Dry Batteries / 5 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.8 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Touring T50 Automatik 101003 [moosgrün-hellbraun] - Schaub und Schaub-Lorenz
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 300 x 188 x 93 mm / 11.8 x 7.4 x 3.7 inch
  • Notes
  • Betrieb im Auto über Autohalterung (64,- DM) aus 6-V- oder 12-V-Autobatterie möglich, dann Ausgangsleistung 4 W.

    Basisspannungs-Stabilisierung mit fest eingebauter DEAC-Zelle (NiCd-Element).

  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
