• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1941–1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 272519

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

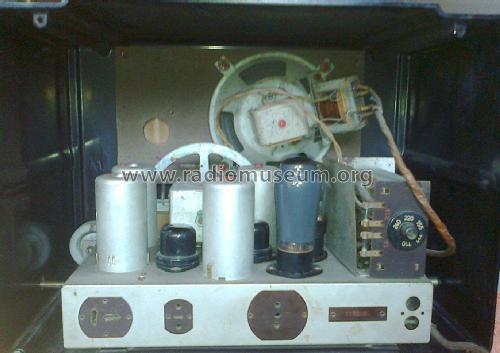

• ECH11 EBF11 ECL11 AZ11

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

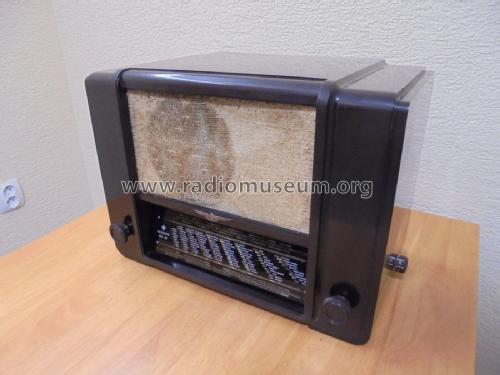

• Model: Weltsuper WS42 [Bakelit ohne EM11] - Schaub und Schaub-Lorenz

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 320 x 260 mm / 17.3 x 12.6 x 10.2 inch

• Author
• Model page created by Martin Steyer. See "Data change" for further contributors.
