Steckspule Lertes

Steckspule Lertes ; Schneider-Opel AG, (ID = 114343) Radio part Steckspule Lertes ; Schneider-Opel AG, (ID = 500961) Radio part
Steckspule Lertes ; Schneider-Opel AG, (ID = 500962) Radio part
Steckspule Lertes ; Schneider-Opel AG, (ID = 114343) Radio part

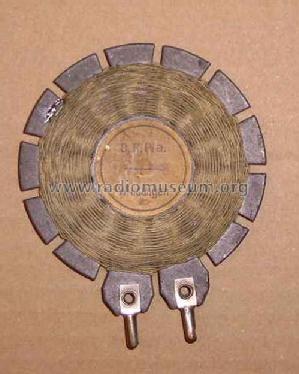

Schneider-Opel AG,: Steckspule Lertes [Radio part] ID = 114343 539x615
For model Steckspule Lertes, Schneider-Opel AG, Radiowerke; Frankfurt a.M., später Berlin:
Steckspule

Country:  Germany
Manufacturer/Brand:  Schneider-Opel AG, Radiowerke; Frankfurt a.M., später Berlin
Brand
Mars
Year: 1927 ?? Type: Radio part (not a module)
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Steckspule Lertes - Schneider-Opel AG, Radiowerke;
Notes Verschiedene Windungszahlen, dabei unterschiedliche Durchmesser der Spulenträger: z.B.bei 25 Wdg.= 82 mm, bei 75 Wdg.= 87 mm.
Induktivität:
25 Wdg.= 35 µH,
50 Wdg.= 155 µH
75 Wdg.= 370 µH.
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Konrad Birkner. See "Data change" for further contributors.
