Stereomaster 4310 FM
ID = 135956
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

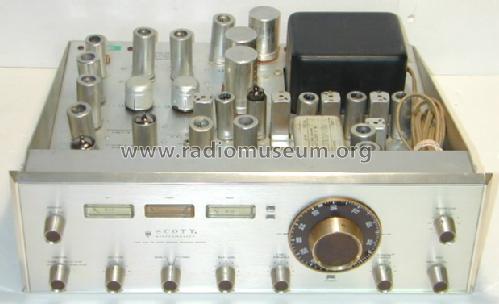

Scott; H.H.; Maynard: Stereomaster 4310 FM [Radio] ID = 492894 619x415
| Country: United States of America (USA) | Manufacturer/Brand: Scott; H.H.; Maynard, Massachusetts |
| Year: 1963 – 1965 | Type: Radio or Tuner |
| Valves / Tubes | 20: 6BS8 6JU8 6BL8 6T8 12BH7 6BN6 6U8 6AU6 6AL5 12AU7 7247 |
|---|
| Principle | Superhet with RF-stage |
|---|---|
| Wave bands | FM Radio only |
| Power type and voltage | Alternating Current supply (AC) / 110-120 Volt |
| Loudspeaker/pwr.out | - For headphones or amp. |
| from Radiomuseum.org | Model: Stereomaster 4310 FM |
| Material | Wooden case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 17.5 x 6.25 x 16 inch / 445 x 159 x 406 mm |
| Notes | "Wideband Broadcast Monitor", the "flagship" Scott tube tuner; with multiple diversity circuit. |
This model was suggested by Gottfried Silberhorn.
