• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1948–1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57272

• • Brand: Silvertone

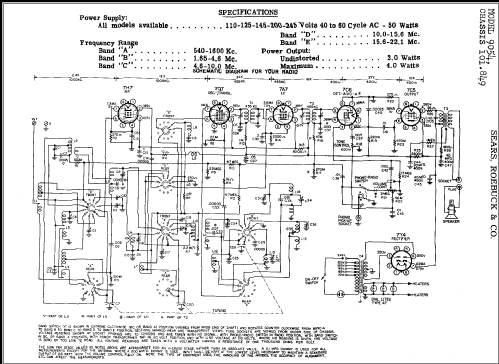

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7H7 7Q7 7A7 7C6 7C5 7Y4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 145, 200, 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

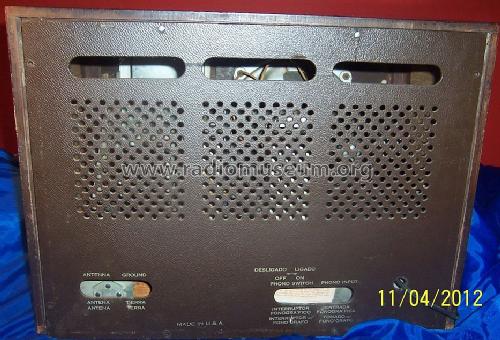

• Model: Silvertone 9054 Ch= 101.849 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 17.25 x 13 x 10.75 inch / 438 x 330 x 273 mm

• Notes

• Band A 535-1650KHz Band B: 1.65-4,6MHz Band C 4.6-10MHz Band D 10-15MHz Band E 15.6-22.1MHz.

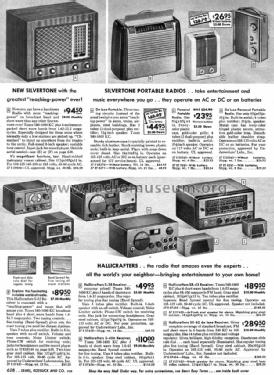

  The price in the Sears Catalog #200 is only $ 49.95.

• Price in first year of sale
• 94.50 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference

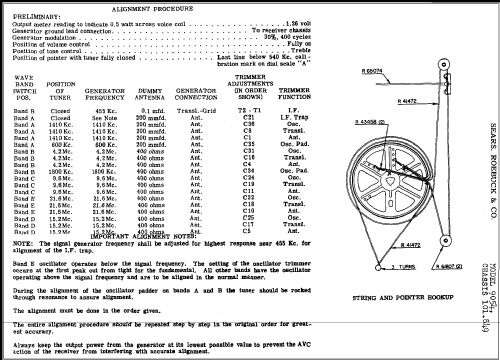

• Rider's Perpetual, Volume 19 = 1949 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)

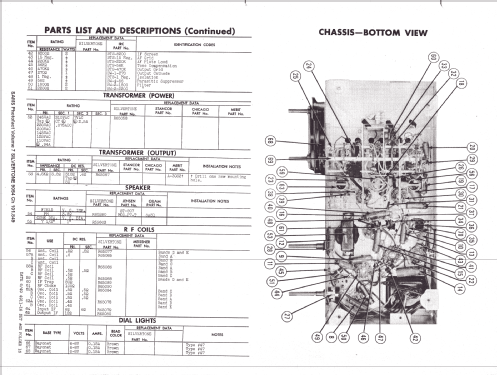

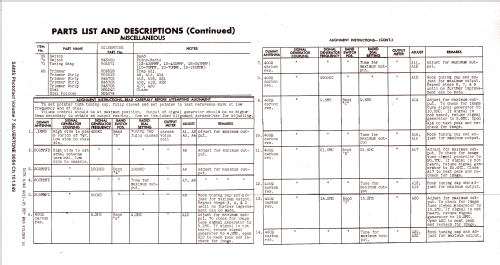

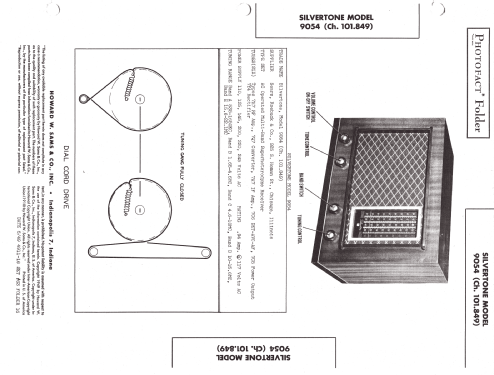

• Photofact Folder, Howard W. SAMS (Volume 7 Folder 4911-16)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (#198, 1949, page 628. #199, 1949/50, page 767. #200, 1950, page 600.)
