• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56863

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6K8G 6U7G 6Q7G 6P5G 6U5 6P5G 6P5G 6AC5G 6AC5G 5Y3G

• Main principle
• ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 10 inch = 25.4 cm

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

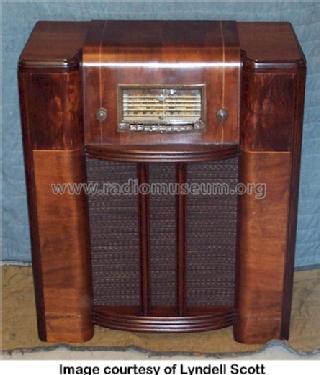

• Model: Silvertone 6436 Ch= 101.574 - Sears, Roebuck & Co.; Chicago

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 28.75 x 35 x 13.5 inch / 730 x 889 x 343 mm

• Notes

• Broadcast 550 to 1700 kc. 6 Buttons.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Pre-War Consoles

• Literature/Schematics (1)
• Riders 11-24, 65, 66
