Portable Dual Power 2035 Japan 704 Order=57K 2035

Portable Dual Power 2035 Japan 704 Order=57K 2035; Sears, Roebuck & Co. (ID = 1685299) Radio Portable Dual Power 2035 Japan 704 Order=57K 2035; Sears, Roebuck & Co. (ID = 1685300) Radio
Portable Dual Power 2035 Japan 704 Order=57K 2035; Sears, Roebuck & Co. (ID = 1685301) Radio
Use red slider bar for more.
Portable Dual Power 2035 Japan 704 Order=57K 2035; Sears, Roebuck & Co. (ID = 1685299) Radio
Sears, Roebuck & Co.: Portable Dual Power 2035 Japan 704 Order=57K 2035 [Radio] ID = 1685299 933x783
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Dual Power 2035 Japan 704 Order=57K 2035, Sears, Roebuck & Co.; Chicago (IL):

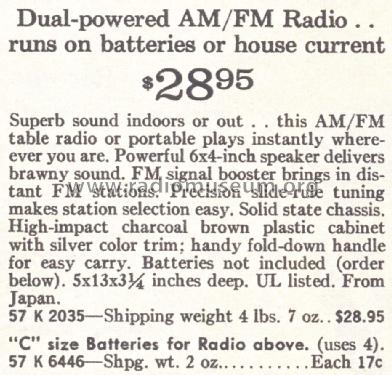

Scan from catalog Sears, Roebuck, 1970, page 864.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1970 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM.
Details
Power type and voltage Line / Batteries (any type) / 120 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Portable Dual Power 2035 Japan 704 Order=57K 2035 - Sears, Roebuck & Co.; Chicago
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 13 x 5 x 3.25 inch / 330 x 127 x 83 mm
Notes

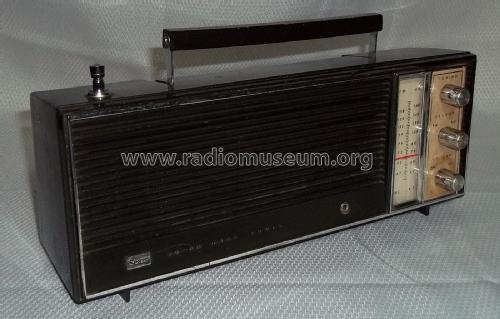

Sears Portable AM-FM Receiver Model 2035 (Japan 704).
Carrying Handle, Telescopic antenna.

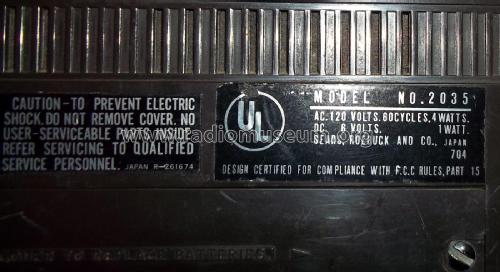

Power Consumption 4 Watts.
Made in Japan.

Price in first year of sale 28.95 $

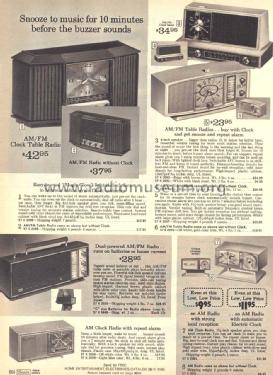

Literature/Schematics (4) Sears, Roebuck Catalogs (Spring/Summer 1970, page 864.)

Model page created by Franz Scharner. See "Data change" for further contributors.
