Silvertone 2087 Ch= 132.42901 Order= 57H 2087

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1968–1971
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 253923
    • Brand: Silvertone

 Technical Specifications

  • Number of Transistors
  • 8
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 2087 Ch= 132.42901 Order= 57H 2087 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 12.75 x 5.375 x 4 inch / 324 x 137 x 102 mm
  • Notes

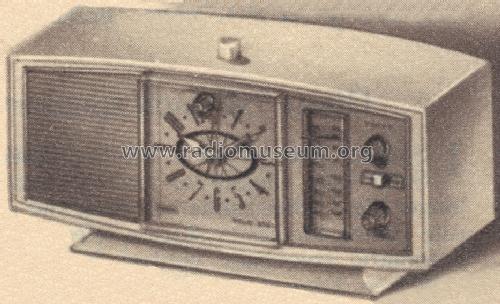

  • The Sears Silvertone 2087 is an AC operated 8 transistor AM/FM clock radio.  Has built-in antenna's for both AM and FM, with provisions for external FM antenna. FM has AFC. Cabinet is white with beige grille.

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks Ind. (Arvin), Columbus, Indiana (Sears Manufacturer Source Number Code 132).

  • Price in first year of sale
  • 23.95 $
  • Author
  • Model page created by Noemi Erb. See "Data change" for further contributors.
