Silvertone Order= 57DM 8118 Ch= 101.825-3F

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1948–1950
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 131418
    • Brand: Silvertone

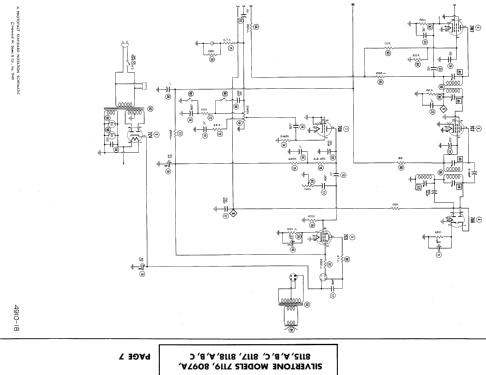

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone Order= 57DM 8118 Ch= 101.825-3F - Sears, Roebuck & Co.; Chicago
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 30.625 x 33 x 16.75 inch / 778 x 838 x 425 mm
  • Notes

  • This Silvertone model 8118 is an AC operated combination Phono-Radio, AM-FM Superheterodyne receiver with loop antenna. It is listed on Photofact within a family of: 7119 Ch= 101.825-26; 8097A Ch= 121.825-4 or 101.825-4; 8115 Ch= 101.825-3D; 8115A, 8115B, 8115C Ch= 101.825-4; 8117 Ch= 101.825-3; 8118 Ch= 101.825-3F and 8118, 8118A, 8118B, 8118C with chassis 101.825-4. The chassis number can be seen on the rear.

    Possibly there are even more models for this chassis family. Therefore please be careful when uploading pictures, schematics or data. Only for model Silvertone 8115B we have placed the Photofact picture. We don't know the shape of the others and could be wrong on the player.

  • Price in first year of sale
  • 199.50 $
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
