Model: Silvertone 9000 132.857
Antique radios, Old Time Radios
Silvertone 9000 132.857
Country:
United States of America (USA)
Manufacturer/Brand:
Sears, Roebuck & Co.; Chicago (IL)
Year: 1948 / 1949
Type:
Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.
Mod.-ID = 57268
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 6 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 455 kHzSuperhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Tuned circuits
4 AM circuit(s);
Wave bands
Broadcast only (MW).Mittelwellenempfänger
Power type and voltage
AC/DC-set / 110-120 VoltAC-DC set (all-mains) - sometimes plus voltage range:
/ = 2 different voltages
- = voltage from-to
* = «Special»
Attention: Chassis mostly connected to deadly high tension!
Apparareil à tous-courants. Tensions mentionnées.
Wechsel- und Gleichstrom:
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl
Vorgeschalteten Trenntrafo verwenden! Chassis oft unter Starkstrom stehend!
Loudspeaker/pwr.out
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)Permanent magnet type moving coil speaker (principle by Rice-Kellog, without field excitation coil).
Haut-parleur avec système dynamique à aimant permanent (sans bobine d`excitation).
Permanentdynamischer Lautsprecher, also (modernes) Tauchspulenprinzip mit Selbsterregung bzw. Permanentmagnet statt Magnetspule. Siehe «Radios von gestern» Seiten 329ff.
www.radiomuseum.org
Model: Silvertone 9000 132.857
Material
Modern plastics (no Bakelite or Catalin)Plastic case - not bakelite.
Caisse en plastique - pas en bekelite!
Moderner Kunststoff im Gegensatz zu Materialien wie Bakelit, Philit etc.
Shape
Tablemodel, Mantle/Midget/Compact but not a Portable (Mains only).
Valves / Tubes
5:
12BA6
(more
for members)
Notes

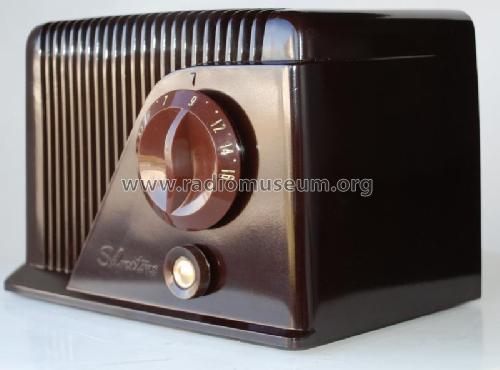

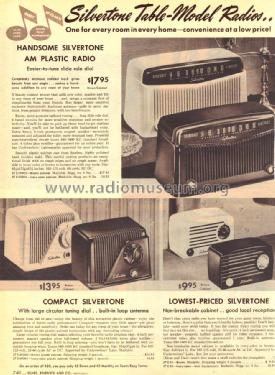

The models Silvertone 9000 (color: Brown) and the model Silvertone 9001 (color: Ivory) share the same chassis 132.857. The given Photofact folder does not reflect this (Date 7-49, 4913-13, set 65, folder 13). The receivers have a loop antenna. Besides the fact that the models have only 4 tuned circuits they have IR amplification before convertting to IF. A standard super has normally 6 tuned circuits including 4 for IF.
Collectors' prices
1 Collector price
(for members)
External source of data
Ernst Erb
Source of data
The Radio CollectorGrinder, 1995The Radio Collectors Directory and Price Guide by Robert E. Grinder, Sonoran Publishing, LLC, USA: Is one of the best books for your information as a radio collector.
Circuit diagram reference
Rider's Perpetual, Volume 20Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 7267.
Mentioned in
Collector's Guide to AR4.Ed.,Bunis, tubeCollectors Guide to Antique Radios, Fourth Edition, 1997, Marty & Sue Bunis, Collector Books, Paducah, USA. See also the other editions.
Literature/Schematics
Photofact Folders, SamsPhotofact Folders, Howard W. Sams. Normally referenced in schematics but when there is more ... (select the last field and enter the number in the free field).
(Date 7-49, 4913-13, set 65, folder 13)
Copy gen. von Jim Dennis Radio Attic
