• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198813

• • Brand: Silvertone

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Various materials

• from Radiomuseum.org

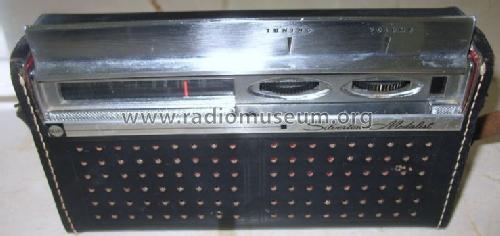

• Model: Silvertone Medalist 3211-14 & 3212-15 Order=57H 3211/3212 - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 8 x 4 x 2 inch / 203 x 102 x 51 mm

• Notes
• The Sears Roebuck Silvertone Medalist was availabe in two colors:
  3211-14 Black
  3212-15 Blue Mist
  Flip-down lid protects the dial and controls, carrying handle.
  Suitable Leather case included.

• Price in first year of sale
• 24.95 $

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1273.)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1962, page 1245.)

• Author
• Model page created by Meyer Rochwerger. See "Data change" for further contributors.
