• Country
• Germany

• Manufacturer / Brand
• Seibt, Dr. Georg (Nachf.); Berlin, auch München

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5653

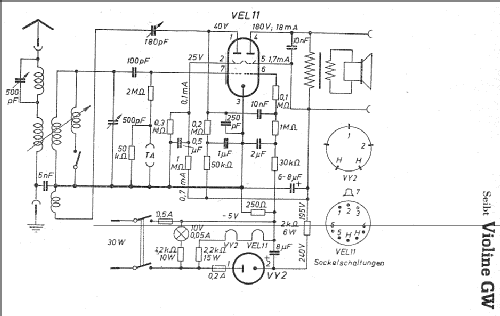

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• VEL11 VY2

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Violine GW - Seibt, Dr. Georg Nachf.;

• Dimensions (WHD)
• 400 x 245 x 275 mm / 15.7 x 9.6 x 10.8 inch

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
