Model: 1U294I (1 U 294 I)
Antique radios, Old Time Radios
1U294I (1 U 294 I)
Country:
United States of America (USA)
Manufacturer/Brand:
Sentinel Radio Corp., Evanston, Illinois
Year: 1946 ?
Type:
Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.
Mod.-ID = 57456
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 7 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 455 kHz; 2 AF-stage(s)Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Tuned circuits
6 AM circuit(s);
Wave bands
Broadcast and Short Wave (SW).
Power type and voltage
AC/DC-set / 117 VoltAC-DC set (all-mains) - sometimes plus voltage range:
/ = 2 different voltages
- = voltage from-to
* = «Special»
Attention: Chassis mostly connected to deadly high tension!
Apparareil à tous-courants. Tensions mentionnées.
Wechsel- und Gleichstrom:
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl
Vorgeschalteten Trenntrafo verwenden! Chassis oft unter Starkstrom stehend!
Loudspeaker/pwr.out
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - ellipticalPermanent magnetic dynamic loudspeaker (moving-coil) in elliptical form - without field excitation coil. Haut parleur elliptique avec système dynamique (sans bobine d`excitation).
Permanent-dynamischer Ovallautsprecher (elliptisch, ohne Erregerspule für das Magnetfeld).
www.radiomuseum.org
Model: 1U294I (1 U 294 I)
Valves / Tubes
6:
12SG7
(more
for members)
Notes

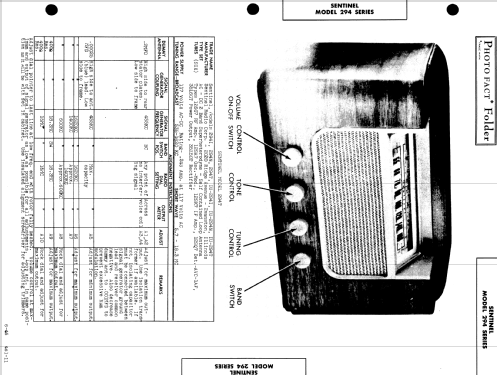

BC (538-1620kHz) and SW (5.7-18.3MHz) bands. Built-in loop antenna for BC band. Sams photofact, set 1, folder 461-11, date 6-46, features the Sentinel models 294I, 194N, 294T, 1U-294I, 1U-294N and 1U-294T as the same schematic.
External source of data
Ernst Erb
Circuit diagram reference
Rider's Perpetual, Volume 15Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 7267.
Literature/Schematics
Photofact Folders, SamsPhotofact Folders, Howard W. Sams. Normally referenced in schematics but when there is more ... (select the last field and enter the number in the free field).
(Set 1 folder 461-11 date 6-46)
No further information
on
1U294I (1 U 294 I) (Sentinel Radio Corp., Evanston, Illinois)
