• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5393

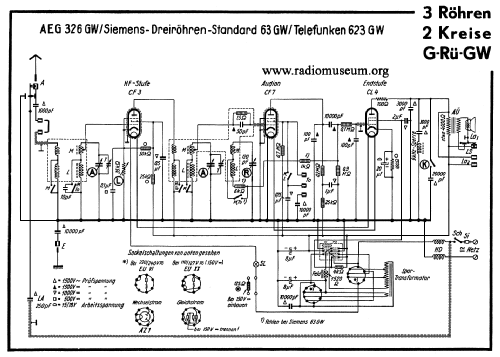

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• CF3 CF7 CL4 optional AZ1 EUXX or EUVI

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

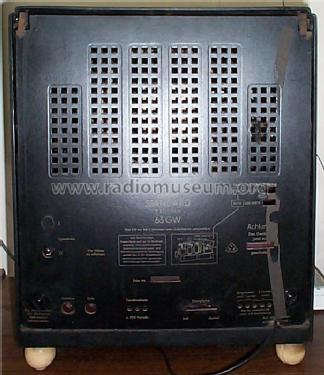

• Model: Standard 63GW - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 370 x 470 x 300 mm / 14.6 x 18.5 x 11.8 inch

• Notes

• Parallelgerät zum Telefunken 623GW in anderem Gehäuse.
  Parallelgerät zum AEG 3-26GW - 326GWL in anderem Gehäuse.

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• Price in first year of sale
• 245.00 RM

• Source of data
• HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

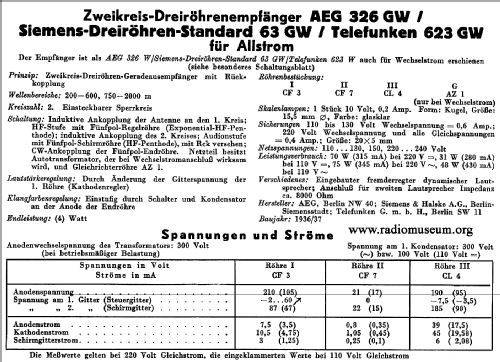

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

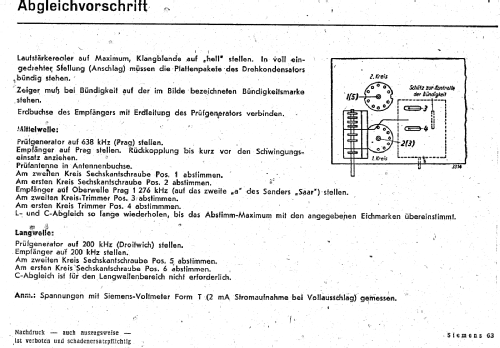

• Literature/Schematics (1)
• -- Original-techn. papers.
