- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1929–1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 5565
Bild ebay
Bild ebay
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF with regeneration; 1 Special; 2 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast and LongWave in ONE range.
- Power type and voltage
- Alternating Current supply (AC) / 110*250 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Bakelite case
- from Radiomuseum.org

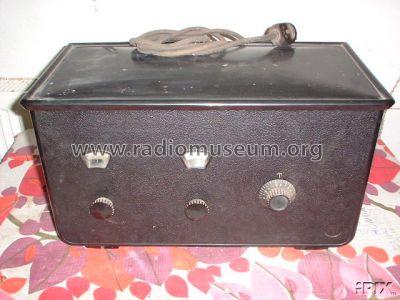

- Model: 40W/134 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 470 x 230 x 230 mm / 18.5 x 9.1 x 9.1 inch
- Notes
-
1930 nannte Siemens seine Geräte um und der Rfe32 wurde zum 40W/134 (Siemens Rundfunk-Nachrichten H.11/12, 1930, S.186).
Preis ohne Röhren, zusätzlich Röhrensatz Preis: 70,50 RM
- Price in first year of sale
- 277.00 RM +
- Source of data
- Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange-Nowisch
