- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1958–1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21764

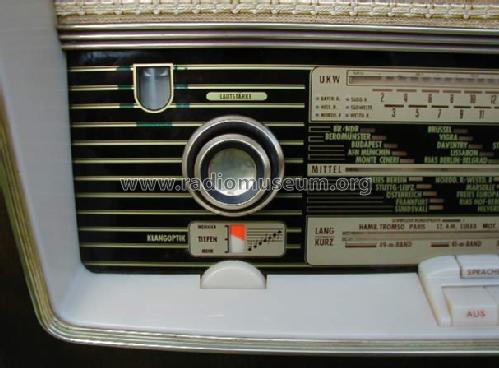

aus ebay, mit Erlaubnis des Verkäufers em85

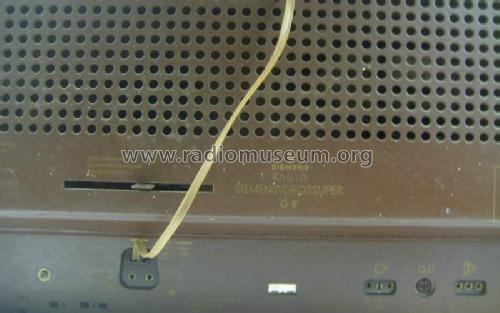

aus ebay, mit Erlaubnis des Verkäufers em85
aus ebay, mit Erlaubnis des Verkäufers em85

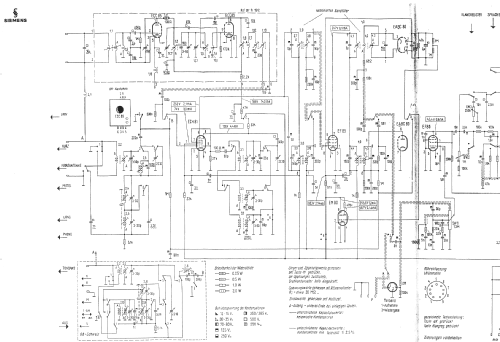

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-125; 150; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Grossuper G8 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 630 x 380 x 280 mm / 24.8 x 15 x 11 inch
- Notes
- dreh- und abschaltbare Ferritantenne. Spannungswahl durch Umstecken der Sicherung.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 379.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
