• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5422

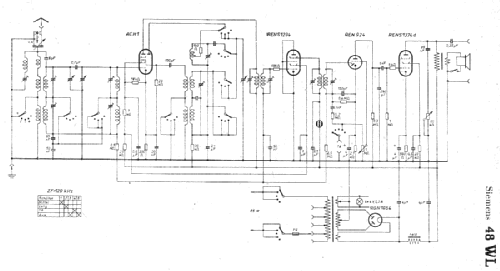

Click on the schematic thumbnail to request the schematic as a free document.

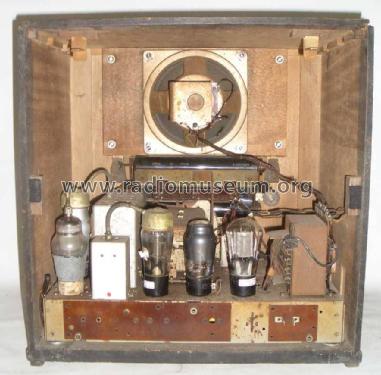

• Number of Tubes
• 5

• Valves / Tubes
• ACH1 RENS1234 REN924 RENS1374d RGN1064

• Main principle
• Superheterodyne (common); ZF/IF 129 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

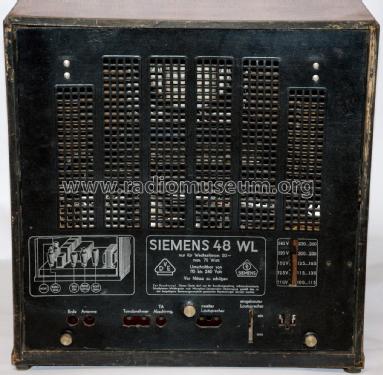

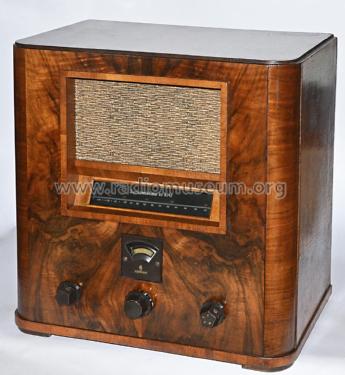

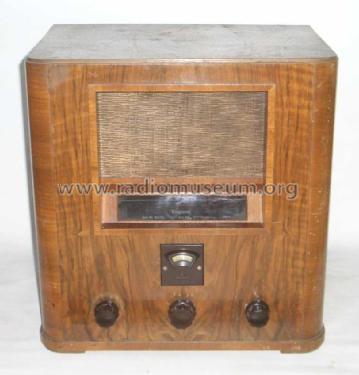

• Model: Länderband-Super 48WL - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 450 x 460 x 310 mm / 17.7 x 18.1 x 12.2 inch

• Notes
• Mit Feldstärke-Anzeige.

• Price in first year of sale
• 320.00 RM

• Source of data
• Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Radio-Katalog, Mix & Genest Hansawerke, 1935

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
