S104U -02 -04 -05 -10 -26 -40 -41 -42 -49

Siera; Belgien

Data
Forum
Pictures
Collections

  • Year
  • 1947–1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 11123

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / (110) 125; (200) 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: S104U -02 -04 -05 -10 -26 -40 -41 -42 -49 - Siera; Belgien
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 250 x 175 x 150 mm / 9.8 x 6.9 x 5.9 inch
  • Notes

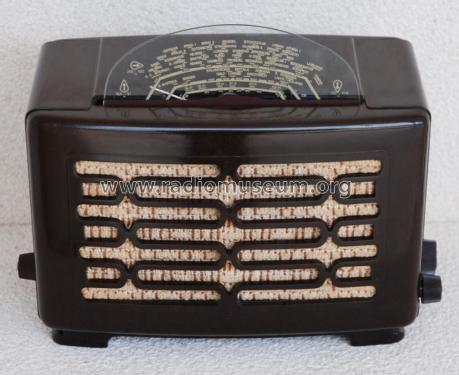

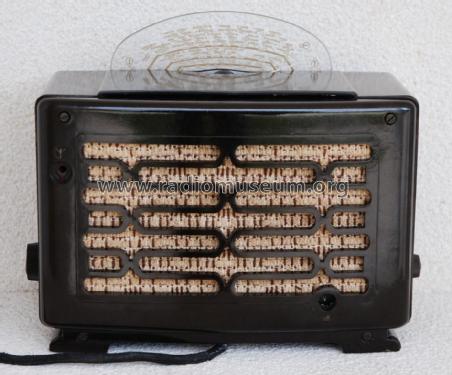

  • The front and the backpanel are identical. Following cabinet colors are found:

    • Dark brown: variants -02, -04, -05, -26, -40, -49
    • Light brown: variant -41
    • Black: variant -10
    • Cream-white: variant -42

    3 Band reception:

    • LW: 750 - 1910 m.
    • BC: 200 - 565 m.
    • SW: 16,5 - 50 m.

    Loudspeaker type 9712. Tuning scale light bulb: 8095D (19V, 90mA). NO connectors for pick-up or external loudspeaker.

    The radio is intended for 125 or 220 Volt AC/DC. In order to select 110 or 200 Volt, resistor R37 has to be shunted.

    Price in Switserland: 307 SFR. Price in the Netherlands: 145 HFl, later 155 HFl.

    Variants -02, -26, -40 and -49 have a bottom hatch, the others have not.

    Variant -40 has an intermediate frequency of 468 kHz instead of 452 kHz. Further differences between the variants can be found in the technical papers.

    Attention: chassis connected to the mains !

    This model is comparable with Philips BX274U and NSF H113U.

  • Net weight (2.2 lb = 1 kg)
  • 3.1 kg / 6 lb 13.3 oz (6.828 lb)
  • Price in first year of sale
  • 2,775.00 BFR
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Generic model 104U by Philips dated 1947)

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Siera; Belgien: S104U -02 -04 -05 -10 -26 -40 -41 -42 -49

Threads: 2 | Posts: 7

Amigo José Duarte,

Sobre o seu artigo em inglês solicitando uma copia do vidro (cristal) do Siera 104U:

http://www.radiomuseum.org/forum/siera_s104u.html


Porque não experimentar também aqui em Português/Espanõl.


Para o que deseja,  esta foto lhe envio não resolve o seu problema porque está muito irregular, mas pode dar uma indicação aos nossos amigos do
Rmorg  sobre a forma e aspecto do vidro.




Talvez se apresentar uma fotografia do seu rádio nos dois foruns em simultâneo, também possa ajudar, alguém que tenha um, a recordar de que rádio está a falar.

Cumprimentos
Mário


Mario Coelho, 20.Mar.06

Weitere Posts (3) zu diesem Thema.

I ´have a radio Siera Model S104u
In case of actual glass been damaged woul like no it´possibel to send me the dial image
I would like to tkans you in advance
Best regards
Jose Duarte
Lisbon
Portugal

Jose Duarte Costa, 13.Mar.06

Weitere Posts (4) zu diesem Thema.
