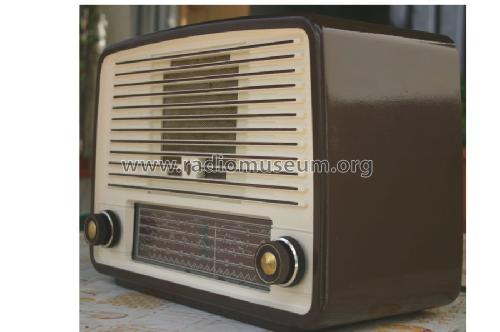

SA2073Z; Siera; Belgien (ID = 456515) Radio
Siera; Belgien: SA2073Z [Radio] ID = 456515 900x598
Select picture or schematic to display from thumbnails on the right and click for download.
For model SA2073Z, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1954 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF89 ECH81 EBF80 EBC41 DM71 EL42 EZ80
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 110-220 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
Power out 6 W (unknown quality)
from Radiomuseum.org Model: SA2073Z - Siera; Belgien
Material Moulded (Bakelite or Plastics)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 370 x 275 x 85 mm / 14.6 x 10.8 x 3.3 inch

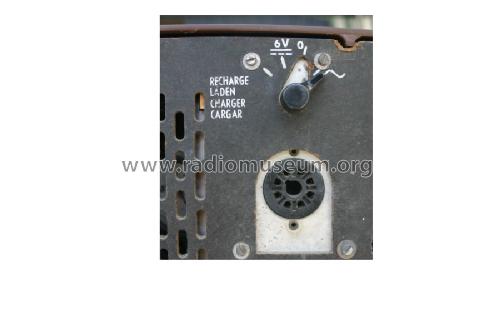

Notes Este radio tiene una particularidad en enchufar en una bateria de 6 voltios. Tiene uno vibrador para generar corriente alternada. This radio has a particularity in plugging in a battery of 6 volts. Has one vibrator to generate alternate current.
Source of data - - Data from my own collection

Model page created by Júlio Branco. See "Data change" for further contributors.
