• Country
• Austria

• Manufacturer / Brand
• Silva Tonmöbel, Silva-Schneider; Salzburg

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149461

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ELL80 EZ80

• Number of Transistors
• 5

• Semiconductors
• AF124 AF124 AF137 SFT351 SFT351 1N60 1N60 1N60 AA119 AA119 AA119 AA119

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

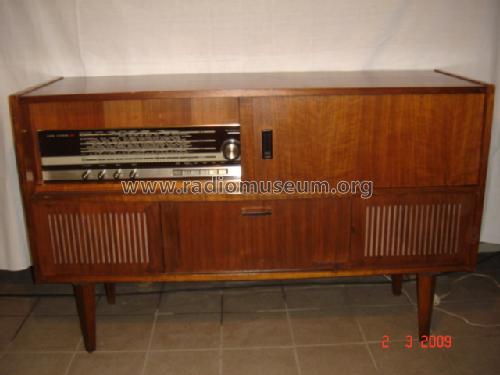

• Model: Stereo-Musiktruhe Ch= 27506 [PE 66 Plattenspieler] - Silva Tonmöbel, Silva-

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 1135 x 715 x 380 mm / 44.7 x 28.1 x 15 inch

• Notes

• Stereodecoder 02823 eingebaut.
  Plattenwechsler: Perpetuum-Ebner PE 66;

  UKW Trennschärfe 1:170, UKW Bandbreite 130 kHz,
  AM Trennschärfe 1:180, AM Bandbreite 3,5 kHz

  Verbrauch 60 Watt.

• Net weight (2.2 lb = 1 kg)
• 36.1 kg / 79 lb 8.2 oz (79.515 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Johann Jachan. See "Data change" for further contributors.
