Arigo ART-60
Skreibson; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Skreibson; Barcelona
- Year
- 1960 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 111199
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common); ZF/IF 450 kHz; 3 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Arigo ART-60 - Skreibson; Barcelona
- Shape
- Chassis only or for «building in»
- Notes
-
Skreibson Arigo ART-60

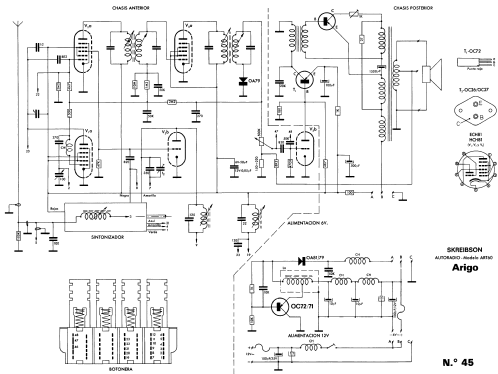

El primer esquema es original del fabricante. El segundo pertenece al libro de esquemas de Afha.
Precio 1967 (PVP): 3.450, 25 + 1.164, 45 (I. L.) = 4.614, 17 Pesetas (1 € = 166, 386 pts)
- Mentioned in
- Factura de mayorista fechada noviembre 1967
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
