Sonor 1926, 3 boutons
SNAP (S.N.A.P.), Radio-Snap, Paris-Confort; Paris
- Country
- France
- Manufacturer / Brand
- SNAP (S.N.A.P.), Radio-Snap, Paris-Confort; Paris
- Year
- 1925/1926
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 87381
-
- Brand: Regional
Collection privée (réf.: 145)
Catalogue Snap
Bild kann nach Auswertung gelöscht werden!
- Number of Tubes
- 3
- Valves / Tubes
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 & 80 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sonor [1926, 3 boutons] - SNAP S.N.A.P., Radio-Snap,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 350 x 190 x 170 mm / 13.8 x 7.5 x 6.7 inch
- Notes
-

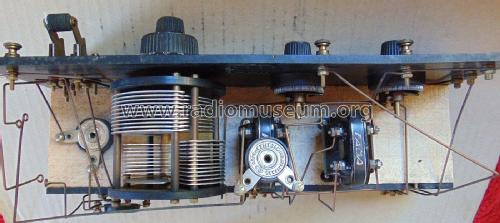

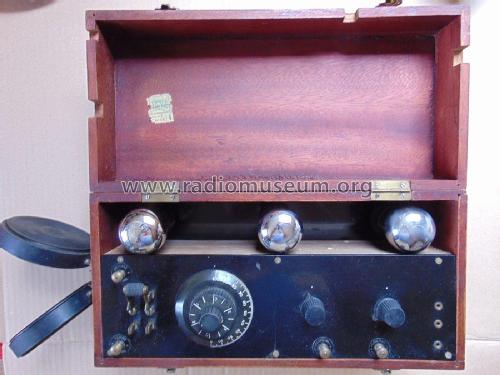

Poste à accord par self interchangeables (3). Condensateur à vernier manoeuvré par démultiplicateur. Inverseur pour PO et GO. 3 lampes micro.
Alimentation par Bloc-Snap. Coffret gainé havane.
Prix pour l'appareil nu avec son jeu de selfs.
Les dimensions peuvent varier, le dépliant mentionne 310x170x170 mm LHP. Ce modèle existe aussi sans gainage.
- Net weight (2.2 lb = 1 kg)
- 3.3 kg / 7 lb 4.3 oz (7.269 lb)
- Price in first year of sale
- 595.00 FRF
- Mentioned in
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 314)
- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
