Excelsior 55

Excelsior 55 ; SNR S.N.R.; Paris (ID = 234683) Radio
Excelsior 55 ; SNR S.N.R.; Paris (ID = 1625229) Radio Excelsior 55 ; SNR S.N.R.; Paris (ID = 145674) Radio
Excelsior 55 ; SNR S.N.R.; Paris (ID = 121193) Radio Excelsior 55 ; SNR S.N.R.; Paris (ID = 145678) Radio
Excelsior 55 ; SNR S.N.R.; Paris (ID = 121192) Radio Excelsior 55 ; SNR S.N.R.; Paris (ID = 121194) Radio
Excelsior 55 ; SNR S.N.R.; Paris (ID = 145676) Radio Excelsior 55 ; SNR S.N.R.; Paris (ID = 145680) Radio
Excelsior 55 ; SNR S.N.R.; Paris (ID = 145683) Radio Excelsior 55 ; SNR S.N.R.; Paris (ID = 455710) Radio
Use red slider bar for more.
Excelsior 55 ; SNR S.N.R.; Paris (ID = 1625229) Radio
SNR S.N.R.; Paris: Excelsior 55 [Radio] ID = 1625229 900x628

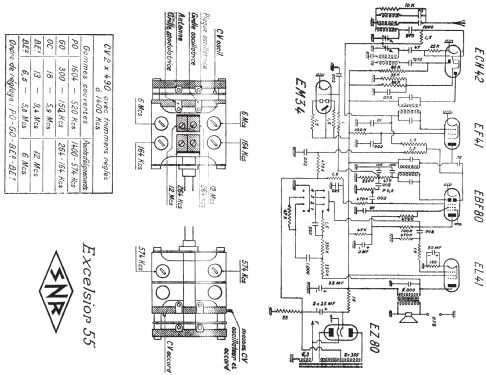

Select picture or schematic to display from thumbnails on the right and click for download.
For model Excelsior 55, SNR (S.N.R.); Paris

Country:  France
Manufacturer / Brand:  SNR (S.N.R.); Paris
Year: 1954/1955 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBF80 EL41 EM4 GZ41
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: Excelsior 55 - SNR S.N.R.; Paris
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 380 x 260 mm / 22.4 x 15 x 10.2 inch
Notes Voyez aussi les modèles 52 - similaires. Façade plastique dorée. 2 cadrans. Couleur verte. C'set pas sure que le "magic eye" est un EM4 - aussi les measures ne sont pas exacte. 4 ondes.
Collectors' prices

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from SNR (S.N.R.); Paris
Here you find 15 models, 12 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SNR S.N.R.; Paris: Excelsior 55
Threads: 1 | Posts: 2
Hits: 2292     Replies: 1
snr: Excelsior 55
Peter Holst
20.Jan.06
  1 Hello Radio lovers

My name is Peter Holst from Sweden,I am looking fore the left dialglass
to my SNR Excelsior 55 it did get broken during the transport from France
to Sweden ,so i would be glad if there are someone anyvere in the world
who has this fore sale or trade.Contact me on peterholst1[A*T]hotmail.com
or peter.holst[A*T]telia.com

Regards Peter
Peter Hughes
09.Apr.07
  2

Peter

If you have all the pieces of the dial glass it is possible that I can make a reproduction glass.

Let me know



Peter


SNR S.N.R.; Paris: Excelsior 55
