Baby Grand S306 (S306BT)

Baby Grand S306 ; Sobell Ind., Slough (ID = 721537) Radio
Baby Grand S306 ; Sobell Ind., Slough (ID = 1514327) Radio Baby Grand S306 ; Sobell Ind., Slough (ID = 1196028) Radio
Baby Grand S306 ; Sobell Ind., Slough (ID = 1514326) Radio Baby Grand S306 ; Sobell Ind., Slough (ID = 1514328) Radio

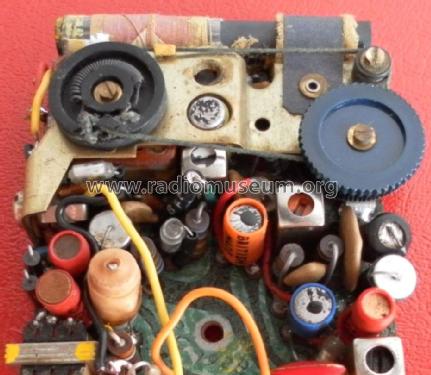

Baby Grand S306 ; Sobell Ind., Slough (ID = 1514330) Radio Baby Grand S306 ; Sobell Ind., Slough (ID = 1514331) Radio
Baby Grand S306 ; Sobell Ind., Slough (ID = 1514332) Radio Baby Grand S306 ; Sobell Ind., Slough (ID = 1514333) Radio
Baby Grand S306 ; Sobell Ind., Slough (ID = 1514334) Radio Baby Grand S306 ; Sobell Ind., Slough (ID = 1514335) Radio
Use red slider bar for more.
Baby Grand S306 ; Sobell Ind., Slough (ID = 1514327) Radio
Sobell Ind., Slough: Baby Grand S306 [Radio] ID = 1514327 933x1237
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baby Grand S306 (S306BT), Sobell Ind., Slough

Country:  Great Britain (UK)
Manufacturer / Brand:  Sobell Ind., Slough
Year: 1961 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC81D OC81 OC81
Principle Super-Heterodyne (Super in general); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.19 inch = 5.6 cm
Power out
from Radiomuseum.org Model: Baby Grand S306 - Sobell Ind., Slough
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 63 x 98 x 28 mm / 2.5 x 3.9 x 1.1 inch
Notes

"Vest pocket" radio. Battery PP3. LW preset to "Light Programme". Same as GEC model G806. Price 10 1/2 gns plus tax.

Alternative transistor set: Mullard OC44M, OC45M and OC45M, GEC GET114, GET114, GET114 and GEX12 diode.

Net weight (2.2 lb = 1 kg) 0.190 kg / 0 lb 6.7 oz (0.419 lb)
Price in first year of sale 11.00 GBP
Collectors' prices
Source of data -- Schematic
Literature/Schematics (1) Radio And Television Servicing books (R&TVS) (Paul Stennings Vintage DVD.)

Model page created by Keith Staines. See "Data change" for further contributors.
