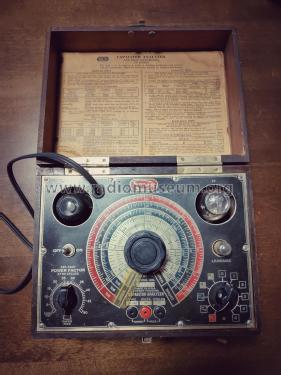

Capacitor Analyzer CB-1-60

• Country
• United States of America (USA)

• Manufacturer / Brand
• Solar Manufacturing, N.Y.

• Year
• 1936–1948 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 96992

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 1-V 6E5

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Capacitor Analyzer CB-1-60 - Solar Manufacturing, N.Y.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 9.5 x 7.5 x 6.5 inch / 241 x 191 x 165 mm

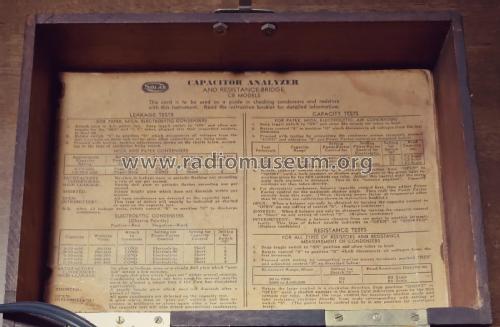

• Notes
• The Solar Capacitor Analyzers meet the requirements of radio service men and engineers for inexpensive instruments which will accurately determine the important electrical characteristic of all types of electrolytic, paper, mica, trimmer, and air condensers. Condensers may be tested for capacity, leakage, opens, shorts, intermittent operation, and power factor. Accurately calibrated markings on several color-coded scales are provided for convenient measurement of capacity and resistance. These tests are made on a Wien Bridge. The power factor of the electrolytic condensers can be read directly from a scale which is calibrated zero to 50% power factor. Operates on 110 Volts, 50-60 Hz. Model CB has FIVE Ranges.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
