• Country
• Germany

• Manufacturer / Brand
• Sommerkamp

• Year
• 1977 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 122752

• • alternative name: Sommerkamp El. Schweiz

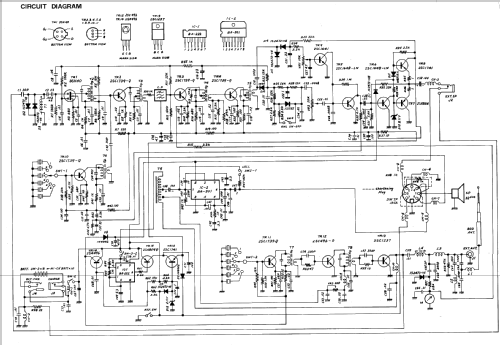

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: CB-Handfunksprechgerät TS-5606 - Sommerkamp

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 78 x 230 x 43.5 mm / 3.1 x 9.1 x 1.7 inch

• Notes
• CB-Handfunksprechgerät, sechs Quarzkanäle im 27-MHz-Band. Sendeleistung max. fünf Watt, Teleskopantenne. Anzeigeinstrument für Senden/Empfang.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
