Lux 50 Radio/Phono

Lux 50 Radio/Phono; Sonneclair, (ID = 1362019) Radio Lux 50 Radio/Phono; Sonneclair, (ID = 1362020) Radio
Lux 50 Radio/Phono; Sonneclair, (ID = 1362021) Radio Lux 50 Radio/Phono; Sonneclair, (ID = 1362022) Radio
Use red slider bar for more.

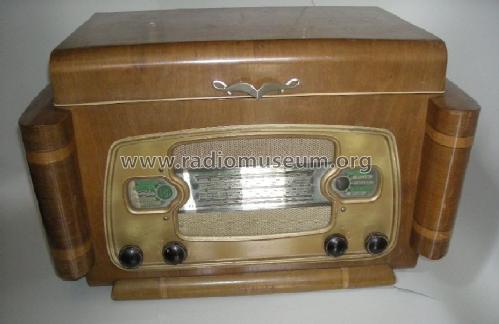

Lux 50 Radio/Phono; Sonneclair, (ID = 1362019) Radio
Sonneclair,: Lux 50 Radio/Phono [Radio] ID = 1362019 930x603
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lux 50 Radio/Phono, Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge

Country:  France
Manufacturer / Brand:  Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM4 GZ40
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Lux 50 Radio/Phono - Sonneclair, Hannecart & Dannay
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 630 x 410 x 390 mm / 24.8 x 16.1 x 15.4 inch
Notes

Phono-Version. Record Player for 78 rpm.

See also Sonneclair Lux 50 without Record Player.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Mentioned in Le grand livre de la TSF (Doctsf Ref. 14246)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
