• Country
• France

• Manufacturer / Brand
• Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71036

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• SFT108 SFT107 SFT106 SFT152 SFT153 SFT123 SFT123 unknown_diode unknown_diode

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 0.32 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

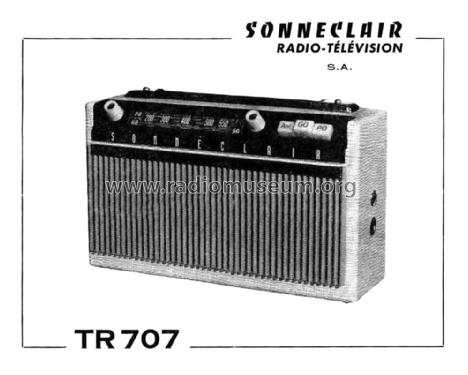

• Model: TR 707 [3 touches] - Sonneclair, Hannecart & Dannay

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 276 x 164 x 85 mm / 10.9 x 6.5 x 3.3 inch

• Notes

• Bloc Oréga 1071B. Prise antenne-auto. HP Z = 20 ohms.

  Coffret bois gainé, façade plastique.

  Cette version est équipée de 3 touches: ANT-GO-PO.

  Voir aussi la variante TR 707 [4 touches] (CAD-ANT-PO-GO).

• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Price in first year of sale
• 255.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Radio et Télévision, Oct. 1960

• Literature/Schematics (1)
• Schémathèque Sorokine (SRK) (No. 1035)

• Literature/Schematics (2)
• -- Original prospect or advert

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
