Princesse 2

Image ID = 468730 for Sonora SA, Radiociné Princesse 2 Image ID = 468732 for Sonora SA, Radiociné Princesse 2
Image ID = 468731 for Sonora SA, Radiociné Princesse 2
Image ID = 468730 for Sonora SA, Radiociné Princesse 2

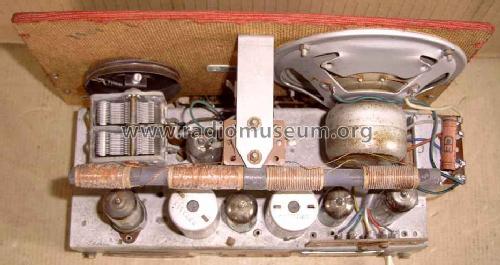

Sonora SA, Radiociné: Princesse 2 [Radio] ID = 468730 266x200

Country: France Manufacturer/Brand: Sonora SA, Radiociné; Puteaux / Paris
Year: 1956 ? Type: Radio or Tuner
Valves / Tubes 5: UF89 UCH81 UBC81 UL84 UY42
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker/pwr.out Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
from Radiomuseum.org Model: Princesse 2
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 280 x 200 x 150 mm / 11 x 7.9 x 5.9 inch
Notes Princesse 2 de Sonora est un récepteur radio à 5 tubes. Il existe en coloris bordeaux ou blanc crème.5 boutons poussoirs permettent de sélectionner la bande.

This model was suggested by Jacky Parmentier.

All listed radios etc. from Sonora SA, Radiociné; Puteaux / Paris
Here you find 143 models, 88 with images and 86 with schematics.

Collection of Jacky Parmentier (F)
