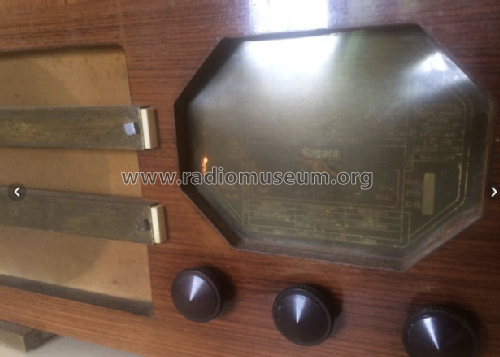

VM-4A et V.M 4
Sonora-Radio; Paris, Puteaux
- Country
- France
- Manufacturer / Brand
- Sonora-Radio; Paris, Puteaux
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 183866
met permissie van Mr Van Hecke
met permissie van Mr Van Hecke
met permissie van Mr Van Hecke
verk 2021 leboncoin fr Nr1961275009
verk 2021 leboncoin fr Nr1961275009
verk 2021 leboncoin fr Nr1961275009
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: VM-4A et V.M 4 - Sonora-Radio; Paris, Puteaux
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 645 x 320 x 270 mm / 25.4 x 12.6 x 10.6 inch
- Notes
-
Système de réglage de la sélectivité par déplacement de deux blocs dans la seconde MF, réglages des MF par 4 petits CV.
5 boutons en façade, commutateur radio/PU à l`arrière.
Couleur chêne blond.
- Mentioned in
- L'Illustration (30 Octobre 1937, No. 4939.)
- Author
- Model page created by J Francois BERTRAND. See "Data change" for further contributors.
