CRF-1

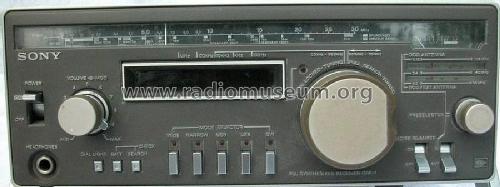

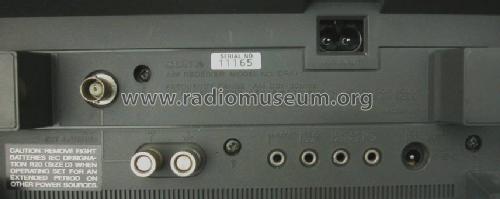

CRF-1; Sony; Tokyo (ID = 118029) Radio CRF-1; Sony; Tokyo (ID = 118030) Radio
CRF-1; Sony; Tokyo (ID = 118031) Radio CRF-1; Sony; Tokyo (ID = 118032) Radio
CRF-1; Sony; Tokyo (ID = 118033) Radio CRF-1; Sony; Tokyo (ID = 118034) Radio
CRF-1; Sony; Tokyo (ID = 130461) Radio CRF-1; Sony; Tokyo (ID = 130462) Radio
Use red slider bar for more.
CRF-1; Sony; Tokyo (ID = 118029) Radio
Sony; Tokyo: CRF-1 [Radio] ID = 118029 638x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model CRF-1, Sony; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony; Tokyo
Year: 1978 ?? Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 68:
Principle Superhet, double/triple conversion
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 100-240/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: CRF-1 - Sony; Tokyo
Material Various materials
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 10 x 4 x 13.2 inch / 254 x 102 x 335 mm
Notes coverage 10 - 30000 kHz, AM/USB/LSB.
Net weight (2.2 lb = 1 kg) 6.6 kg / 14 lb 8.6 oz (14.537 lb)
Collectors' prices

Model page created by Martin Bösch. See "Data change" for further contributors.
