TC-366; Sony; Tokyo (ID = 363406) R-Player
Sony; Tokyo: TC-366 [R-Player] ID = 363406 504x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model TC-366, Sony; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony; Tokyo
Year: 1971 ? Type: Recorder and/or Player
Semiconductors (the count is only for transistors) 1:
Principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: TC-366 - Sony; Tokyo
Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 420 x 175 x 400 mm / 16.5 x 6.9 x 15.7 inch

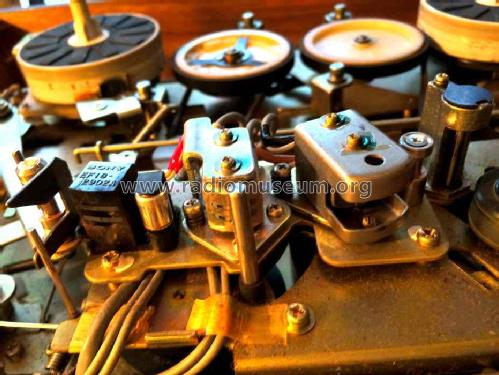

Notes 4-track, 2-channel stereo reel to reel tape deck. 3 heads. Reversible case; the chassis can be mounted 180° rotated for horizontal or vertical operation.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Collectors' prices
Source of data - - Data from my own collection

Model page created by Peter Spies. See "Data change" for further contributors.
