TFM-7050W USA & Canada Model

TFM-7050W; Sony Corporation; (ID = 824344) Radio TFM-7050W; Sony Corporation; (ID = 824345) Radio
Use red slider bar for more.
TFM-7050W; Sony Corporation; (ID = 824344) Radio

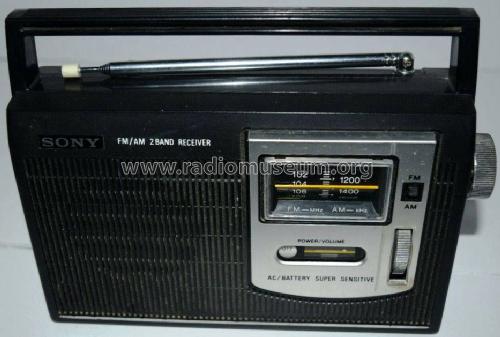

Sony Corporation;: TFM-7050W [Radio] ID = 824344 268x253
Select picture or schematic to display from thumbnails on the right and click for download.
For model TFM-7050W USA & Canada Model, Sony Corporation; Tokyo:
Sony service manual

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 455/ 10700 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 120 / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: TFM-7050W [USA & Canada Model] - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 229 x 168 x 66 mm / 9 x 6.6 x 2.6 inch
Notes Sony TFM-7050W FM-AM Portable Radio (USA & Canada Model);
AM: 87.5 - 108 MHz,
FM: 530 - 1.605 kHz, 4 W power consumption.
Net weight (2.2 lb = 1 kg) 1.050 kg / 2 lb 5 oz (2.313 lb)
Collectors' prices
Source of data - - Manufacturers Literature
