Chassis Ch= V24-04AA (24 Series)

Spartan, Div. of Magnavox

  • Year
  • 1958 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 197120

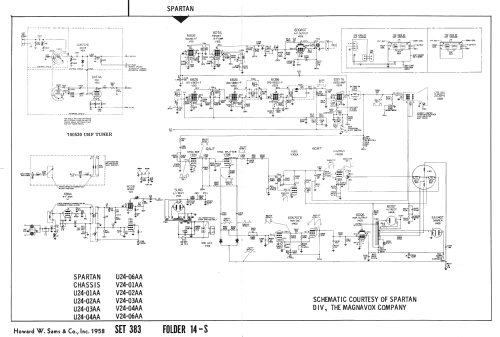

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 17
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Chassis Ch= V24-04AA - Spartan, Div. of Magnavox
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Spartan Chassis V24-04AA is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 700624-1 and picture tube 21CBP4A.

  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
