Sailor 16T

Sailor 16T; S.P. Radio A/S; (ID = 72506) Receiver-C
Sailor 16T; S.P. Radio A/S; (ID = 74843) Receiver-C Sailor 16T; S.P. Radio A/S; (ID = 385781) Receiver-C
Sailor 16T; S.P. Radio A/S; (ID = 74844) Receiver-C Sailor 16T; S.P. Radio A/S; (ID = 242326) Receiver-C
Sailor 16T; S.P. Radio A/S; (ID = 242327) Receiver-C Sailor 16T; S.P. Radio A/S; (ID = 277745) Receiver-C
Sailor 16T; S.P. Radio A/S; (ID = 385780) Receiver-C Sailor 16T; S.P. Radio A/S; (ID = 713875) Receiver-C
Sailor 16T; S.P. Radio A/S; (ID = 1648041) Receiver-C
Use red slider bar for more.
Sailor 16T; S.P. Radio A/S; (ID = 74843) Receiver-C
S.P. Radio A/S;: Sailor 16T [Receiver-C] ID = 74843 640x448
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sailor 16T, S.P. Radio A/S; Aalborg:

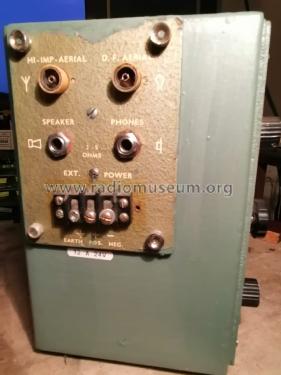

die Schraubenköpfe an der Oberseite des Gehäuses und die Antennenbuchse hinten links (SO-239) sind nicht original

Country:  Denmark
Manufacturer / Brand:  S.P. Radio A/S; Aalborg
Brand

Sailor
Year: 1962 ? Type: Communication/Commercial Receiver (also Amateur)
Semiconductors (the count is only for transistors) 9:
Principle Superhet with RF-stage; ZF/IF   kHz
Tuned circuits 7 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 6x1.5/12/24/32 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Sailor 16T - S.P. Radio A/S; Aalborg
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 335 x 220 x 150 mm / 13.2 x 8.7 x 5.9 inch

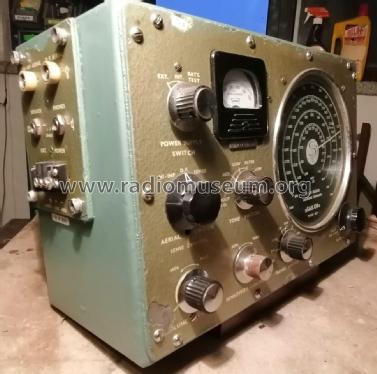

Notes Marine communications receiver, 0,15 - 4 MHz in four ranges, reception gap 425 - 525 kHz, AM/CW/SSB with BFO. Waterresistant case for table top or wall installation, inside holder for six 1.5 volts D cells.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Collectors' prices
Source of data -- Schematic

Model page created by Iven Müller. See "Data change" for further contributors.

All listed radios etc. from S.P. Radio A/S; Aalborg
Here you find 39 models, 33 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.




Forum contributions about this model
S.P. Radio A/S;: Sailor 16T
Threads: 1 | Posts: 2
Hits: 1395     Replies: 1
sp-radio: 16T (16 T); Sailor
Walter Knutsen
30.Aug.07
  1

Hello fellow members. I am at the moment busy restoring a " SAILOR" 16T marine radio made by

S.P.radio, Denmark and I now have the problem that I do not know what its intermediate frequency

is ( possibly somewhere around 470 kHx?). Can anyone help? Best regards Walter Knutsen.

Ernst Erb
08.Sep.07
  2

Dear Walter
Just to bring this up again:
If you don't get an answer here you might put the question in German (try Google for translation) then your community is much bigger and since it is a Danish product the chances for an answer are bigger too ;-)

Otherwise you just add interesting things to this thread about the model - after it has "gone under" again ... Since the thread is sticked to the model the chances are good - if you then need the answer still.

With this example we see how important it is that members contribute all their knowledge to models ... There are methods how you can find out which IF can be used  on a model  - maybe somebody explains here in English ?
