Oscillatore modulato


Country: Italy Manufacturer/Brand: SRE - Scuola Radio Elettra
Year: 1952 Type: Alle Arten von Geräten, die eine Radiowerkstatt im weitesten Sinne umfassen kann - sofern es der Hauptzweck des Apprates bzw. Modelles ist.Service- or Lab Equipment Mod.-ID = 100315 previous | Result List | next | New search for Radios etc. Schematics etc.: 2 (for members) Wave bands Bitte geben Sie die Wellenbänder an, falls Sie mehr wissen.Wave Bands given in the notes.
Power type and voltage Supplied through an external unit or the main unit, e.g. a radio. Alimentation par l`appareil principal ou autre appareil.
Speisung durch anderen Apparat, z.B. bei Vorsatzgeräten durch das Radio.
Powered by external power supply or a main unit. / 100-250 / 6,3 Volt

from Radiomuseum.org Model: Oscillatore modulato Material Metal case.
Caisse en métal.
Gerät, dessen Gehäuse aus Metall gefertigt ist. Es kann sich um verschiedenartige Metalle und Oberflächenbearbeitungen handeln. Ist es hingegen nur ein Chassis, so erhält das Gerät eine andere Bezeichnung.
Metal case

Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 170 x 50 x 120 mm / 6.7 x 2 x 4.7 inch
Valves / Tubes 1: 6J7G

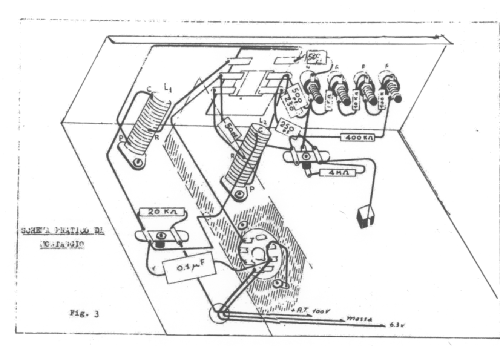

Notes Oscillatore modulato per la taratura di ricevitori, cambio gamma con doppio deviatore e tre uscite attenuate. Circuito a semplice reazione e automodulato, frequenza 470 KHz, 600 KHz, per i 1200 KHz si utilizza la seconda armonica. L'alimentazione,100-250 Volt DC e 6,3 Volt AC, viene presa collegandosi allo stesso ricevitore in prova o ad un apposito alimentatore esterno. Il circuito è contenuto in un mobiletto di metallo grigio groffato

This model was suggested by Giuseppe Antonio Tusini.


No further information on

Oscillatore modulato (SRE - Scuola Radio Elettra)
