Imperial 400WK

• Country
• Germany

• Manufacturer / Brand
• Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

• Year
• 1939–1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4952

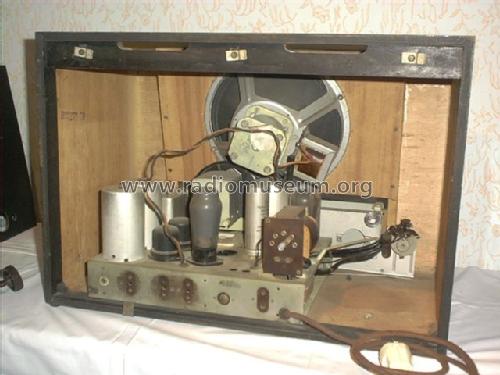

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 477 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Imperial 400WK - Stassfurter Licht- und

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 390 x 305 mm / 21.7 x 15.4 x 12 inch

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 209.00 RM

• Source of data
• Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Fortschritte der Funktechnik und ihrer Grenzgebiete (8 Bände) (6)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
