• Year
  • 1931/1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 5070

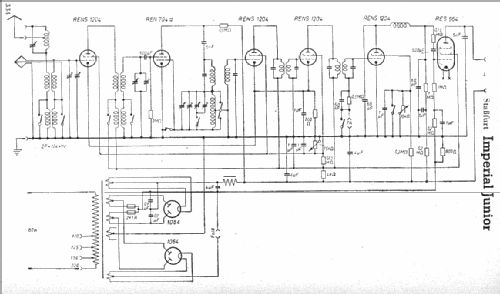

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 124 kHz
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Imperial Junior WL [Schrank] - Stassfurter Licht- und
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 495 x 1100 x 410 mm / 19.5 x 43.3 x 16.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 47.5 kg / 104 lb 10 oz (104.626 lb)
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
