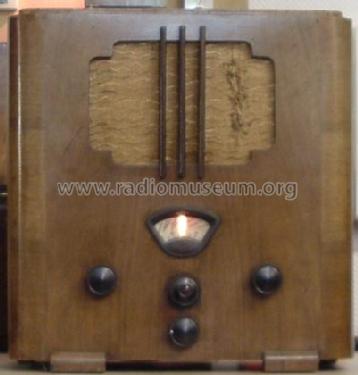

Midget G43 (G 439)
Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
- Country
- Germany
- Manufacturer / Brand
- Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 5082
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 1 Special; 2 AF stage(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Direct Current supply (DC)
- from Radiomuseum.org
- Model: Midget G43 - Stassfurter Licht- und
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
