• Year
  • 1930 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 164701
    • Brand: Marvel

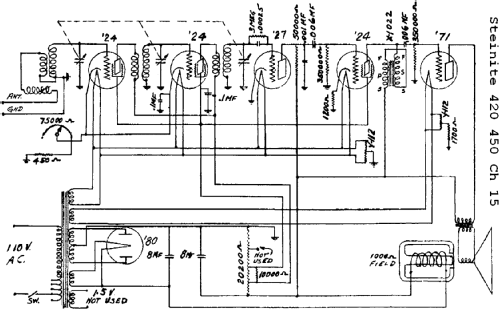

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • TRF without regeneration; 2 AF stage(s); Screengrid 1926-1935
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 90-130 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: 450 Ch= 15 - Steinite Radio Co., Warwick
  • Circuit diagram reference
  • Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
  • Mentioned in
  • Rider's 2-3
