• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166800

• • alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• GF122 GF121 GF121 GC101 GC116 GC121 GC121

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

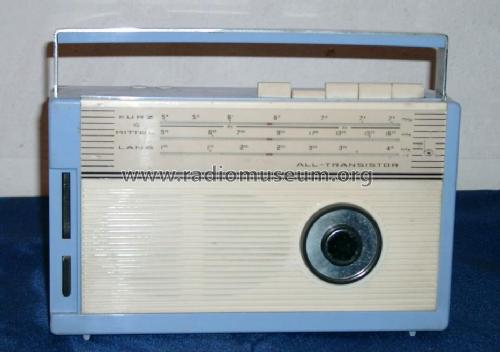

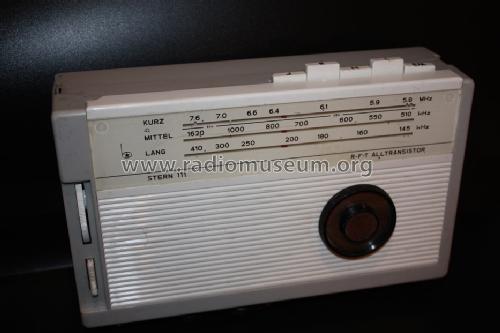

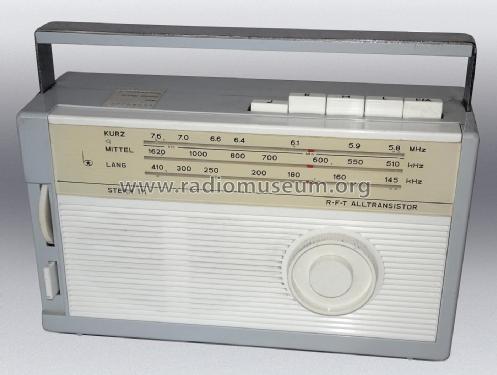

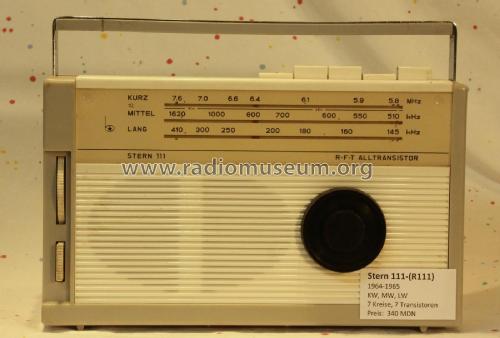

• Model: Stern111 R111 1151.014-020000 c - Stern-Radio Berlin, VEB, RFT,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 266 x 156 x 80 mm / 10.5 x 6.1 x 3.1 inch

• Notes
• Kofferempfänger Stern111
  Plastgehäuse; Anschlüsse für Ohrhörer/ext. Lautsprecher und Autoantenne.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Price in first year of sale
• 340.00 Mark

• Mentioned in
• Portabel-Service Funkverlag Hein

• Author
• Model page created by Michael Seiffert. See "Data change" for further contributors.
