Zaunkönig

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 16619

• • alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

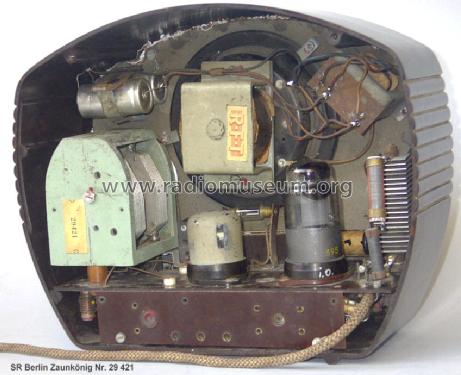

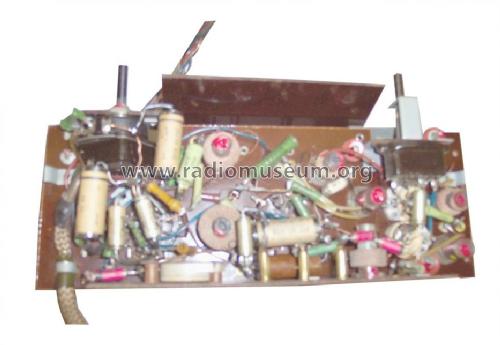

• Number of Tubes
• 2

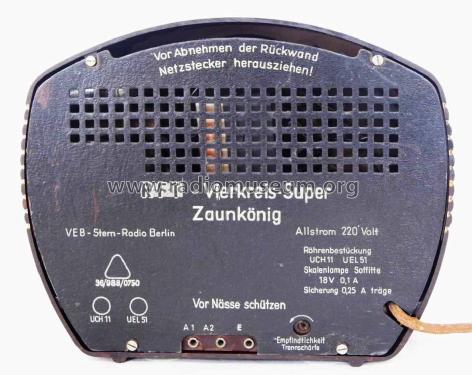

• Valves / Tubes
• UCH11 UEL51

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Main principle
• Superhet, IF regeneration; ZF/IF 472 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Zaunkönig - Stern-Radio Berlin, VEB, RFT,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 285 x 235 x 120 mm / 11.2 x 9.3 x 4.7 inch

• Notes

• AM-Vierkreis-Super mit Rückkopplung [596-24B]; vier Farben laut Prospekt: rot, braun, grün, braun-marmoriert.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 146.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

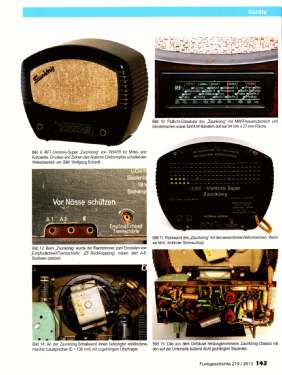

• Literature/Schematics (1)
• Radio und Fernsehen 6/1956
