Juwel 2 Phono SOLO

Juwel 2 Phono ; Stern-Radio Rochlitz (ID = 62872) Radio

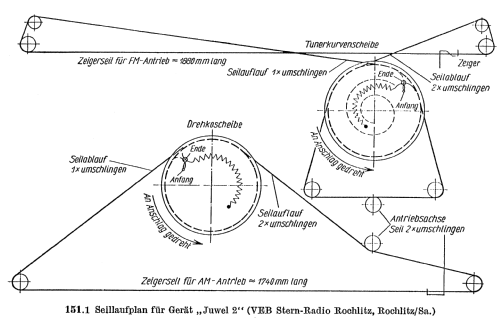

Juwel 2 Phono ; Stern-Radio Rochlitz (ID = 676920) Radio
Juwel 2 Phono ; Stern-Radio Rochlitz (ID = 1411066) Radio Juwel 2 Phono ; Stern-Radio Rochlitz (ID = 1411067) Radio
Juwel 2 Phono ; Stern-Radio Rochlitz (ID = 1411068) Radio Juwel 2 Phono ; Stern-Radio Rochlitz (ID = 1411069) Radio
Juwel 2 Phono ; Stern-Radio Rochlitz (ID = 1411070) Radio Juwel 2 Phono ; Stern-Radio Rochlitz (ID = 1411071) Radio
Use red slider bar for more.
Juwel 2 Phono ; Stern-Radio Rochlitz (ID = 1411066) Radio
Stern-Radio Rochlitz: Juwel 2 Phono [Radio] ID = 1411066 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Juwel 2 Phono SOLO, Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
Year: 1957–1959 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EBF80 EM80 EABC80 EL84 EZ80
Principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Juwel 2 Phono [SOLO] - Stern-Radio Rochlitz, VEB, RFT
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes 2 Varianten: mit Taste "SOLO" oder neuer mit Taste "3D"
Source of data Radiokatalog Band 2, Ernst Erb
