Prominent Duo 202

Prominent Duo 202; Stern-Radio (ID = 190277) Radio

Prominent Duo 202; Stern-Radio (ID = 190278) Radio
Prominent Duo 202; Stern-Radio (ID = 288027) Radio Prominent Duo 202; Stern-Radio (ID = 288029) Radio
Prominent Duo 202; Stern-Radio (ID = 288030) Radio Prominent Duo 202; Stern-Radio (ID = 1535198) Radio
Prominent Duo 202; Stern-Radio (ID = 189570) Radio Prominent Duo 202; Stern-Radio (ID = 189571) Radio
Prominent Duo 202; Stern-Radio (ID = 1014664) Radio Prominent Duo 202; Stern-Radio (ID = 1014665) Radio
Prominent Duo 202; Stern-Radio (ID = 1150432) Radio Prominent Duo 202; Stern-Radio (ID = 1260237) Radio
Use red slider bar for more.
Prominent Duo 202; Stern-Radio (ID = 288027) Radio
Stern-Radio: Prominent Duo 202 [Radio] ID = 288027 933x342
Select picture or schematic to display from thumbnails on the right and click for download.
For model Prominent Duo 202, Stern-Radio Sonneberg, VEB, RFT; -vorm.: EAK (Ostd.) - ex. AEG:
Serien Nr.:4911802

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1978 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.7 W (unknown quality)
from Radiomuseum.org Model: Prominent Duo 202 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 680 x 140 x 220 mm / 26.8 x 5.5 x 8.7 inch

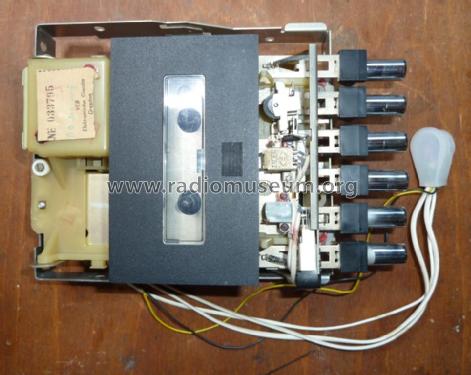

Notes Der Prominent Duo 202 ist eine Kombination des Heimempfängers H IV 1122 mit dem Kassettenteil K III (KGB4). Das Gerät hat Anschlüsse für TA, TB, Mikrofon und für einen Zweitlautsprecher. Im Kassettenteil sind 10 Transistoren eingebaut.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 850.00 Mark
Collectors' prices
Source of data - - Data from my own collection
Literature/Schematics (1) Service-DVD Funkverlag B. Hein

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Sonneberg, VEB, RFT; -vorm.: EAK (Ostd.) - ex. AEG
Here you find 377 models, 296 with images and 273 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Stern-Radio: Prominent Duo 202
Threads: 1 | Posts: 1
Hits: 670     Replies: 0
stern-sonn: 202; Prominent Duo
Egon Strampe
05.Aug.15
  1

Gerät blieb stumm, keine NF. C 39 auf Leiterpl. Kassettenbaust. hatte Schluß.


Stern-Radio: Prominent Duo 202
