Library Ch= R-108
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1933 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 246504
-
- Brand: Ferrodyne
Inside view of model R-108 chassis.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 25-60 Hz, 100-135 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Library Ch= R-108 - Stewart Warner Corp.; Chicago
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 5 x 9.25 x 8 inch / 127 x 235 x 203 mm
- Notes
-

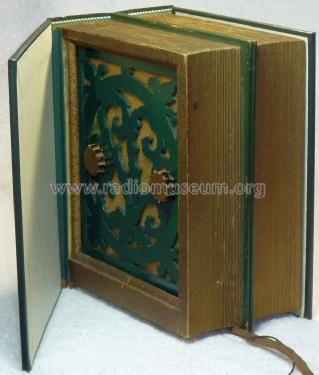

Radio receiver in the shape of two books with imitation leather cover.
The radio chassis employed is also described as a separate Stewart Warner model R-108.
- Net weight (2.2 lb = 1 kg)
- 6.25 lb (6 lb 4 oz) / 2.838 kg
- Literature/Schematics (1)
- Rider's Perpetual, Volume 3 = 1933 and before (Page 3-6)
- Author
- Model page created by Gary Albach. See "Data change" for further contributors.
