• Country
• Australia

• Manufacturer / Brand
• Stromberg-Carlson (Australasia) Pty. Ltd. Sydney

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133549

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

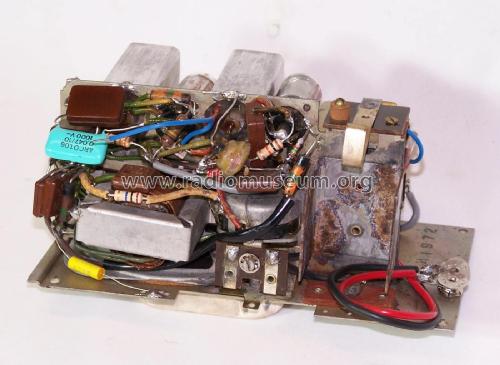

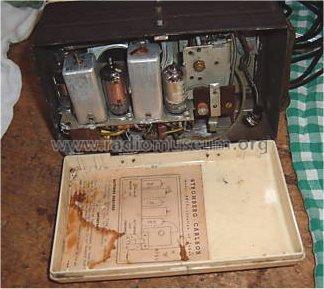

• Valves / Tubes
• 1R5 1T4 1S5 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• from Radiomuseum.org

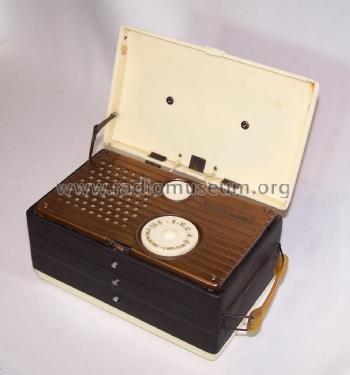

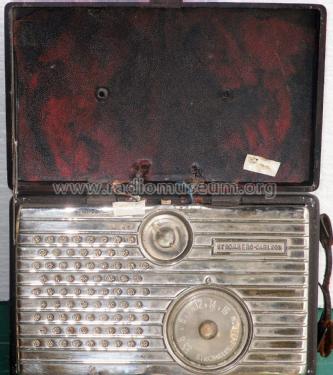

• Model: 4P17 - Stromberg-Carlson Australasia

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 200 x 100 x 120 mm / 7.9 x 3.9 x 4.7 inch

• Source of data
• -- Schematic

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VI

• Author
• Model page created by Peter Hughes. See "Data change" for further contributors.
