Swan Vox-PTT switch VX-1
Swan Electronics, Oceanside, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Swan Electronics, Oceanside, CA
- Year
- 1965
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 189715

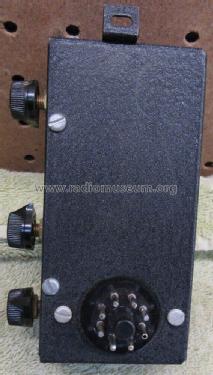

aus ebay, #325857763688, Verkäufer pcobra93
aus ebay, #325857763688, Verkäufer pcobra93
aus ebay, #325857763688, Verkäufer pcobra93
- Number of Transistors
- 5
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Swan Vox-PTT switch VX-1 - Swan Electronics, Oceanside,
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 33 x 130 x 75 mm / 1.3 x 5.1 x 3 inch
- Notes
-
External small-box applied to SWAN transceiver 250-350-400 series for VOX-PTT operation. Plugged to the left side of the transceiver.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Emilio Focosi. See "Data change" for further contributors.
